CCBoot Wiki Database - Add boot image
1. Open CCBoot UI and click on the "Image Manager" node.2. Right click on the right pane and choose "Add Image"
Figure 1
3. Image dialog box opens, in "Image Name" box enter the name of the image and then click browse button " ... " (Figure 2)
Figure 2
4. Now, browse to where you image is and select it and click "Open" button (Figure 3).
Figure 3
5. Now, in the image dialog box, you will see the "Image Path", click "OK" button to add the image (Figure 4).
Figure 4

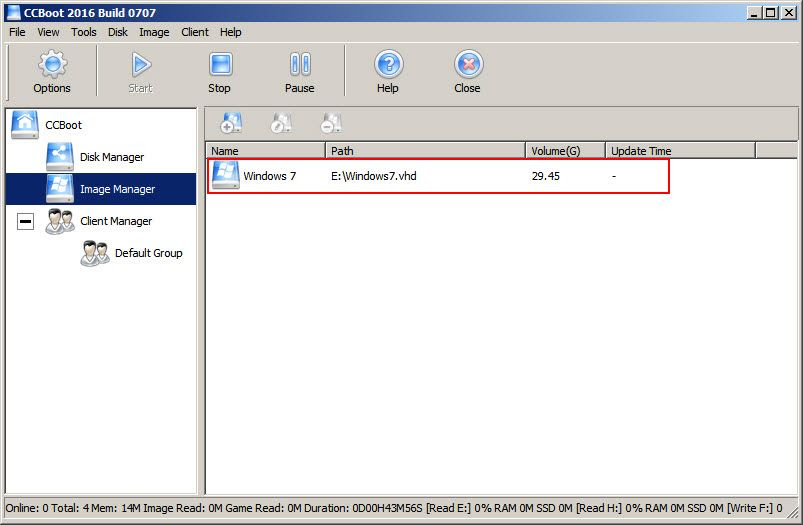

6. Now, in the image manager, you will see the image you just added (Figure 5).
Figure 5
You can add many images in CCBoot and assign them to client.
To
assign the image, double click the client and then in "Client Details"
click the "Image" drop down and select your image "Windows 7" and click
"OK" (Figure 6).
Figure 6
You can assign any image to client that you have added in the "Image Manager".
